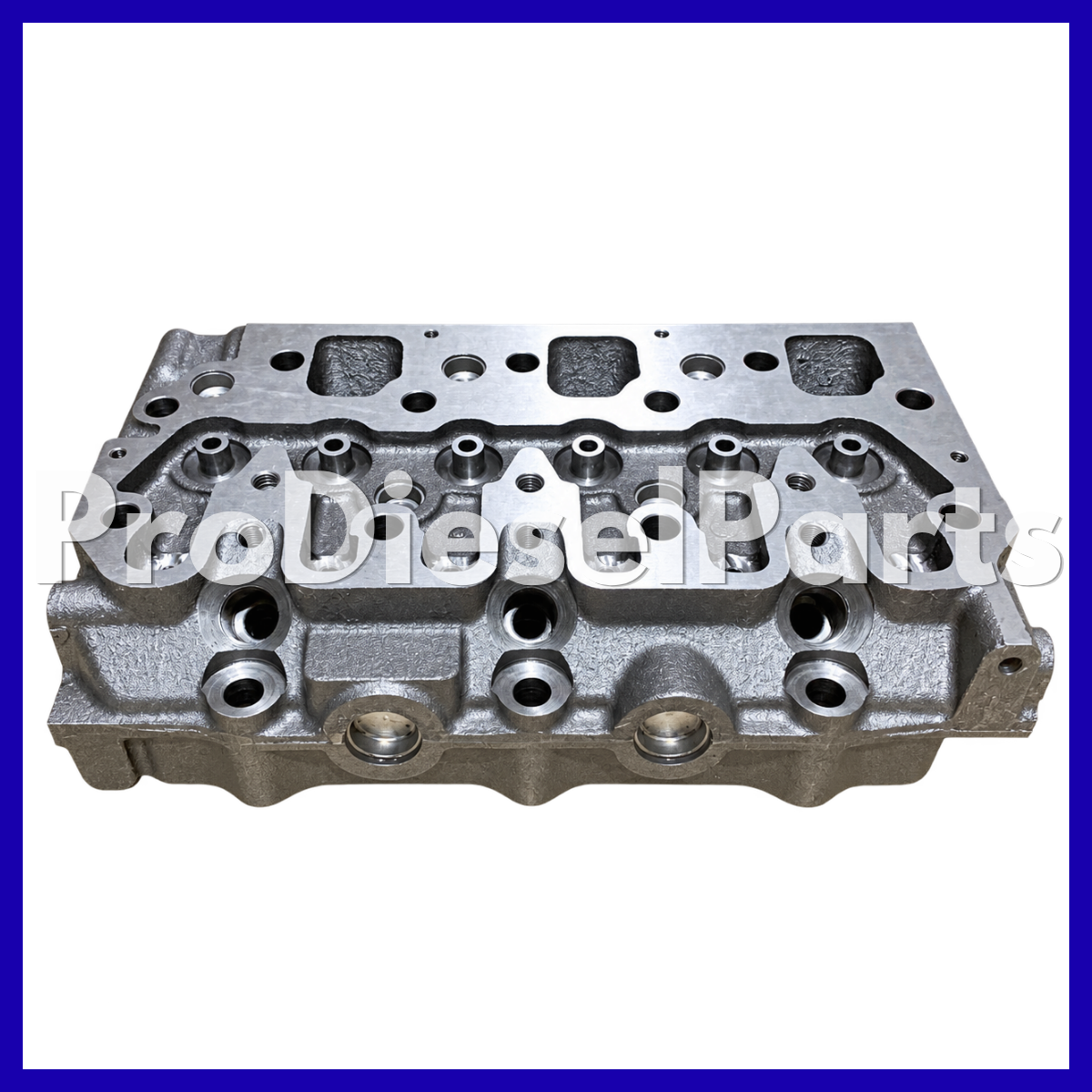

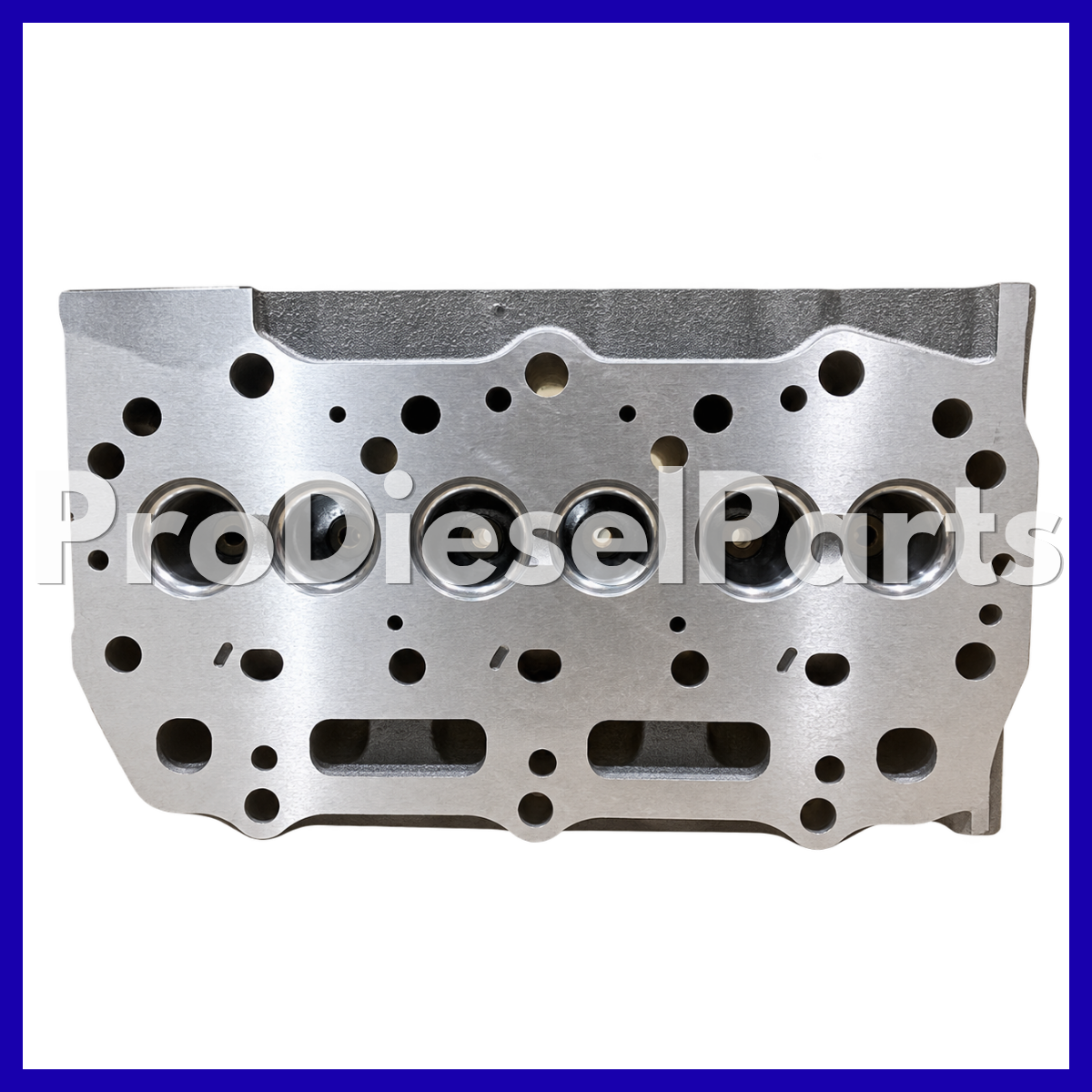

Caterpillar 3013C Cylinder Head – Bare (Clamp-In Injector Type)

  • Application: Caterpillar 3013C Industrial Diesel Engine
  • ESN / Engine Prefixes: 313, C5N, E1M, G3P, G7N
  • Distinguishing Feature: Machined specifically for clamp-in style fuel injectors
  • Configuration: Bare Cylinder Head Casting (Pre-fitted valve guides and seats)
  • Condition: 100% Brand New Replacement (No core charge or return required)

$1,001.91

In Stock
SKU: PDP-CAT-3013-MXF-5040 Categories: , Tag:

Description

Heavy-Duty Bare Cylinder Head for Clamp-In Injector Configurations

Restore peak combustion efficiency and factory compression ratios with this high-precision bare cylinder head engineered specifically for Caterpillar 3013C industrial diesel engines. Because heavy-duty construction machinery faces continuous thermal cycling, this casting delivers dependable upper-engine structural strength, dedicated coolant circulation, and precise injector pocket tolerances.

This specific casting features precision-machined clamp-in injector ports and specialized pre-combustion chamber pockets. Consequently, it directly services engine builds utilizing bracket-retained injectors rather than screw-in configurations. In addition, high-density metallurgical alloyed cast iron provides outstanding thermal conductivity, preventing localized warping across the valve bridges during high-load continuous duty. Furthermore, precision CNC-machined deck surfaces provide an ultra-flat mating interface with your cylinder block. Therefore, this deck prevents micro-leakage and maintains long-term head gasket retention.

Technical Specifications & Serial Prefix Compatibility

Valve seat angles, stem guide bores, and manifold mounting patterns conform strictly to SAE International Standards, ensuring smooth valvetrain alignment and low-friction valve travel. To guarantee proper injector seating depth and valve recession, verify your engine serial prefix prior to installation:

  • Supported Engine Serial Prefixes (ESN): 313, C5N, E1M, G3P, G7N
  • Injector Fitment Style: Clamp-Down / Flange Retained Injector Bores
  • Valvetrain Architecture: 3-Cylinder In-Line, 2 Valves per Cylinder (6-Valve Complete)
  • Material Grade: High-Density Metallurgical Cast Iron

Additionally, rebuilders can source matching intake and exhaust valves, guide inserts, springs, retainers, and multi-layer steel head gaskets directly through our dedicated Caterpillar 3013C engine parts category to complete a full overhaul with zero assembly delays.

Manufacturing Standards & Integrity Checks

  • Hydraulic Pressure Verification: Advanced leak tests verify all internal coolant jackets and oil galleries to guarantee zero casting porosity.
  • Direct Fit Geometry: Standard valve guide bores and seat inserts accept drop-in valvetrain hardware without extra line-boring.
  • Engineered Fire Deck: Precision micro-finishing ensures uniform bolt torque retention across all cylinder head fasteners.

Reference Cross-Reference Numbers: 431-5040, 4315040. All manufacturer names, symbols, and numbers are used solely for identification and cross-reference purposes.

Additional information

Weight 35 lbs
Dimensions 24 × 12 × 10 in
Brand

Caterpillar

Engine Model

3013C

ESN / Engine Prefixes

313, C5N, E1M, G3P, G7N

Configuration

Bare Cylinder Head (Guides & Seats Pre-Installed)

Injector Bore Type

Clamp-In / Bracket Retained Type

Material

High-Density Alloyed Cast Iron

Condition

100% Brand New Replacement (No Core Return Required)
