Cylinder Heads
This dedicated category provides precision-engineered cylinder head assemblies and valvetrain components for Caterpillar 3013C industrial diesel engines. Specifically, these cylinder heads withstand extreme thermal stresses and continuous peak combustion pressures. Because combustion chamber integrity governs overall diesel efficiency, each casting utilizes high-density alloy iron. Precision-machined surfaces ensure complete sealing against the engine block. In addition, these assemblies prevent compression loss, thermal warping, and external fluid leakage.
Every cylinder head meets strict dimensional and metallurgical standards defined by SAE International Standards for heavy-duty industrial machinery. Consequently, our inventory delivers reliable replacement options for both bare castings and fully loaded assemblies. Loaded heads feature pre-installed intake valves, exhaust valves, springs, and guides to streamline your overhaul process. Furthermore, exact factory valve seat angles optimize volumetric airflow and exhaust gas scavenging across all operating RPM ranges.
Routine top-end rebuilds and emergency cylinder head repairs demand exact fitment across matching components. Therefore, replacing cylinder head bolts, valve stem seals, and head gaskets alongside the head assembly guarantees optimal clamp load and long service life. You can browse complementary engine rebuild kits, pistons, and cooling system parts in our primary Caterpillar 3013C Engine Parts catalog.
Showing all 16 results
-
Caterpillar Engine 3013C

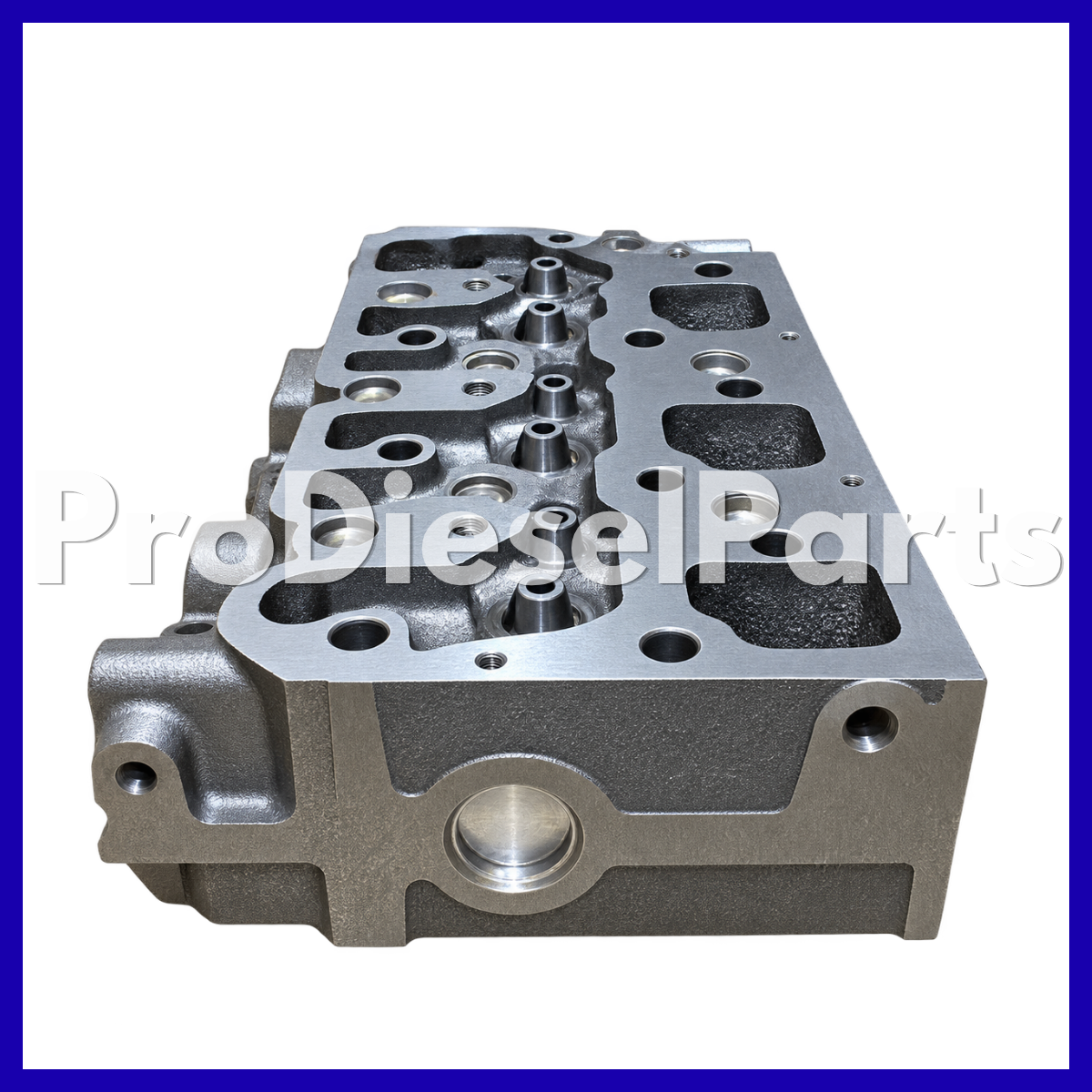

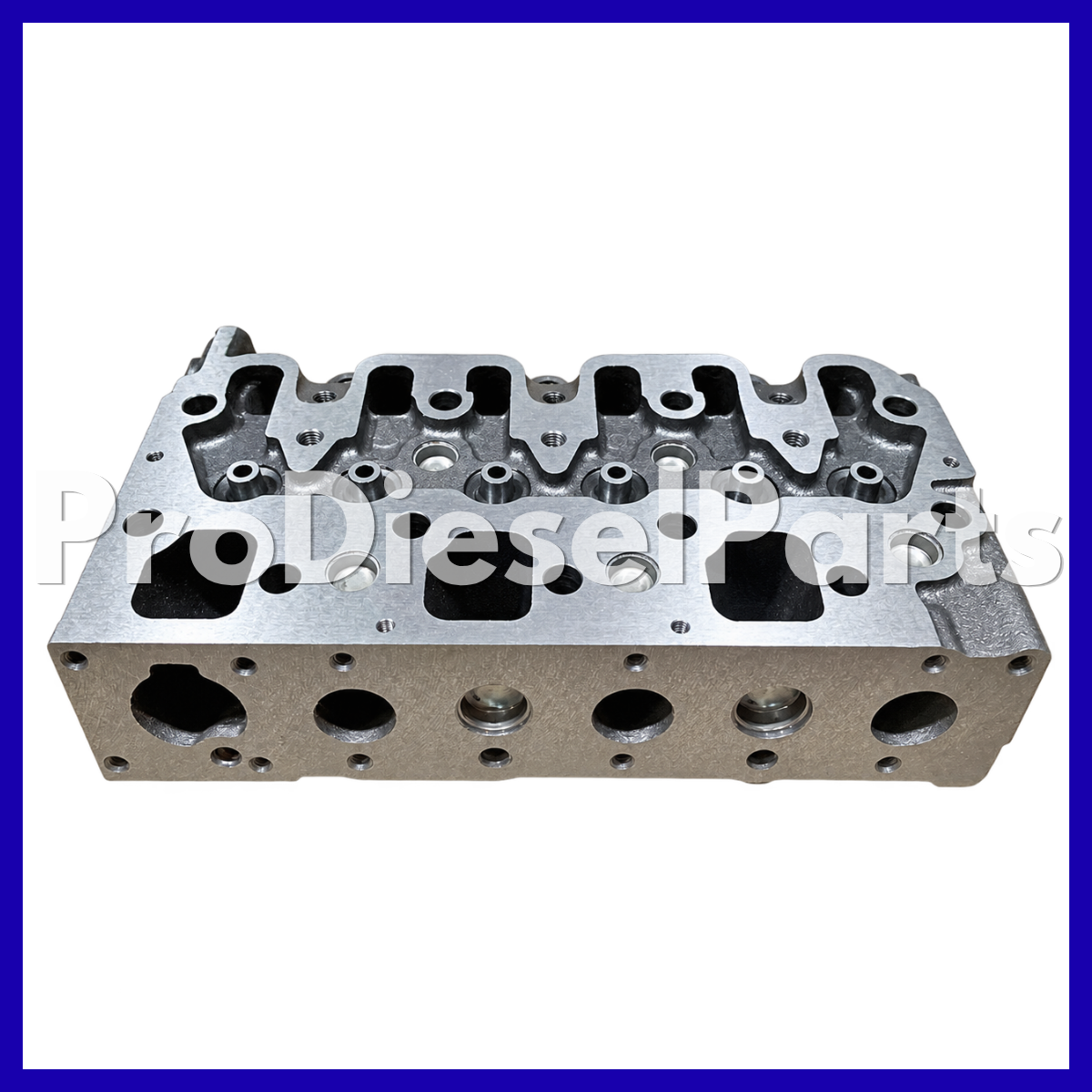

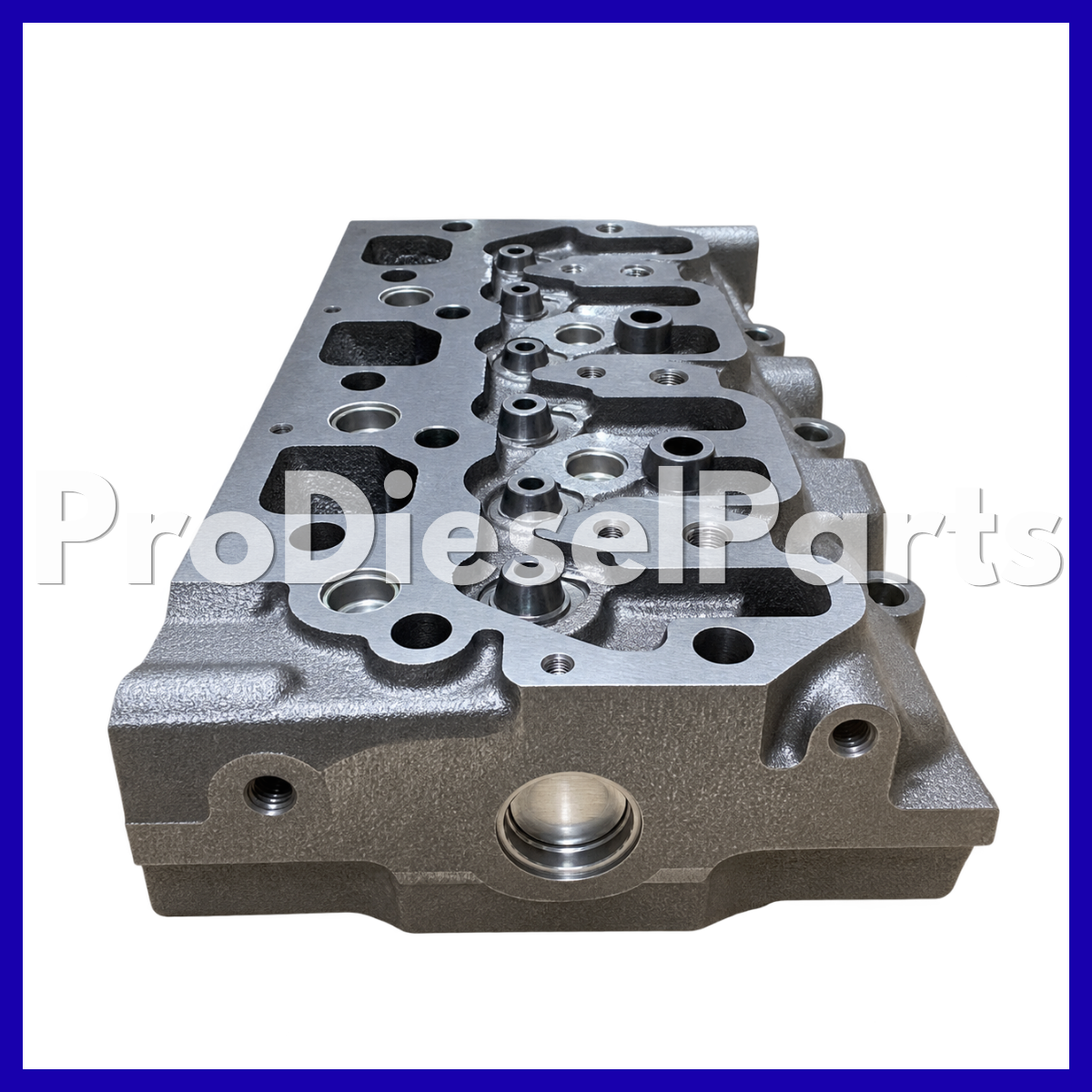

Caterpillar 3013C Cylinder Head – Bare
- Application: Caterpillar 3013C Industrial Diesel Engine
- ESN / Engine Prefixes: 313, C5N, E1M, G3P, G7N
- Configuration: Bare Cylinder Head Casting (Standard Guide/Seat Bores)
- Material: High-Tensile Cast Iron
- Condition: 100% Brand New Replacement (No core return required)
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Cylinder Head – Bare (Clamp-In Injector Type)
- Application: Caterpillar 3013C Industrial Diesel Engine
- ESN / Engine Prefixes: 313, C5N, E1M, G3P, G7N
- Distinguishing Feature: Machined specifically for clamp-in style fuel injectors
- Configuration: Bare Cylinder Head Casting (Pre-fitted valve guides and seats)
- Condition: 100% Brand New Replacement (No core charge or return required)
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Cylinder Head Gasket – 1.4mm
- Specifically designed for Caterpillar 3013C diesel engines across industrial and equipment applications.
- Engineered with a precise 1.4 mm thickness to restore original combustion chamber geometry and compression.
- Reinforced stainless steel combustion armor delivers maximum resistance against high cylinder pressures.
- High-density composite substrate provides exceptional micro-sealing against oil leaks and coolant migration.
- Manufactured to meet exacting heavy-duty performance and endurance specifications.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Exhaust Valve
- Specifically engineered for Caterpillar 3013C diesel engines operating under heavy duty cycles.
- Manufactured with a 45-degree precision sealing face to ensure complete combustion pressure containment.
- Constructed from high-temperature alloy steel to resist thermal oxidation and valve head micro-pitting.
- Hardened and chrome-treated stem prevents friction galling inside the cylinder head valve guide.
- Direct OEM-specification replacement designed to restore factory exhaust flow and timing geometry.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Overhaul Gasket Set Complete
- Engine Applicability: Direct-fit overhaul sealing kit for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Engineered for engine arrangements with serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Compatible with Caterpillar mini excavators (302.5, 303.5) and vibratory compactors (CB-214D, CB-334D, CB-335D).
- Comprehensive Rebuild Scope: Includes cylinder head gasket, front and rear crankshaft seals, valve cover gasket, oil pan gasket, manifold gaskets, and sealing O-rings.
- Heavy-Duty Construction: Built with high-temperature elastomers and multi-layer metallic components for superior blowout resistance and fluid retention.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Glow Plug 12V
- Engine Applicability: Direct replacement 12V glow plug engineered for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Compatible with engine arrangements running serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini excavators (301.5 through 303.5) and vibratory compactors (CB-214D, CB-334D, CB-335D).
- Rapid Preheating: Fast-acting internal heating coil ensures quick thermal saturation of the pre-combustion chamber for clean, reliable starts.
- Durable Sheath Design: Oxidation-resistant alloy probe with rolled M10 threads prevents combustion blow-by and seized threads.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Cylinder Head Bolt Standard
- Engine Applicability: Direct replacement cylinder head bolt for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Engineered for engine platforms with serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Compatible with Caterpillar mini excavators (301.5 to 303.5) and vibratory asphalt rollers (CB-214D to CB-335D).
- High Clamping Strength: Heat-treated alloy steel construction ensures high tensile resilience and uniform cylinder head clamping force.
- Precision Flange Design: Rolled threads and integrated flanged hex head ensure accurate torque distribution across the head surface.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Intake Valve Standard
- Engine Applicability: Standard-size intake valve engineered for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Built for engine configurations bearing serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Compatible with Caterpillar mini excavators (301.5 through 303.5) and vibratory compactors (CB-214D to CB-335D).
- Hardened Stem Tip: Resists continuous rocker arm impact and wear during severe high-RPM duty cycles.
- Precision Seating Face: Precision-ground 45-degree contact face ensures optimal compression seal and smooth intake airflow.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Guide Standard
- Engine Applicability: Standard-size intake and exhaust valve guide for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Compatible with engine arrangements running serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini excavators (301.5 to 303.5) and vibratory compactors (CB-214D to CB-335D).
- Wear-Resistant Alloy: Specially formulated alloy cast iron provides optimal lubrication retention and galling resistance.
- Precise Press-Fit Tolerance: Ground external diameter ensures secure press-fit seating and concentric valve face alignment.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Guide Oversize
- Engine Applicability: Oversize intake and exhaust valve guide (+0.05 mm OD) for Caterpillar 3013 and 3013C diesel engines.
- ESN & Prefix Support: Compatible with engine arrangements running serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini excavators (301.5 to 303.5) and vibratory compactors (CB-214D to CB-335D).
- Remanufacturing Fitment: Increased outer diameter restores critical press-fit retention in reamed or worn cylinder head bores.
- Wear-Resistant Alloy: Formulated alloy cast iron delivers superior oil retention and scuff resistance against valve stems.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Spring Outer
- Engine Applicability: Heavy-duty replacement valve spring for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Compatible with engine configurations bearing serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini hydraulic excavators (301.5 to 303.5) and vibratory compactors (CB-214D to CB-335D).
- Shot-Peened Wire: Premium alloy steel construction with shot-peened finish resists fatigue failure and load loss.
- Precision Ground Ends: Square-ground ends deliver uniform load distribution across the retainer and guide boss.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Lock Standard
- Engine Applicability: Direct-fit valve lock keeper for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Compatible with engine configurations bearing serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini excavators (301.5 to 303.5) and vibratory rollers (CB-214D to CB-335D).
- Precision Tapered Fit: High-precision outer taper seats flush inside the spring retainer collar to prevent retainer detachment.
- Heat-Treated Alloy Steel: Hardened wear-resistant steel withstands rapid cyclical spring compression and valvetrain harmonics.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Spring Retainer Standard
- Engine Applicability: Standard valve spring retainer cap for Caterpillar 3013 and 3013C 3-cylinder diesel engines.
- ESN & Prefix Support: Engineered for engine configurations bearing serial number prefixes 9TJ1-UP and 3AF1-UP.
- Equipment Fitment: Fits Caterpillar mini excavators (301.5 through 303.5) and vibratory rollers (CB-214D through CB-335D).
- High Clamping Security: Precision-tapered internal collar securely wedges valve keepers under heavy spring loads.
- Heat-Treated Construction: Alloy steel architecture resists stress cracking and surface brinelling during severe operating cycles.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Cylinder Head Exhaust Valve Standard
- ESN Compatibility: Fits Caterpillar 3013C engine serial number prefixes 313, C5N, E1M, G3P, G7N.
- Exact Application: Cylinder head exhaust valve engineered to control hot exhaust gas release.
- High-Temperature Steel: Built from heat-resistant alloy to resist warping, micro-cracking, and gas erosion.
- Chrome Plated Stem: Reduces valvetrain friction and protects against premature valve guide wear.
- Direct Fit: Manufactured to exact OEM dimensional tolerances for reliable combustion chamber sealing.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Cylinder Head Inlet Valve Standard
- ESN Compatibility: Fits Caterpillar 3013C engine serial number prefixes 313, C5N, E1M, G3P, G7N.
- Exact Application: Cylinder head inlet valve (intake valve) for Caterpillar series 3000 engines[cite: 2].
- Airflow Optimization: Precision-ground head profile ensures maximum fresh airflow and complete chamber sealing.
- Stem Protection: Hardened stem prevents galling and premature wear inside the cylinder head valve guide.
- Direct Replacement: Built to exact OEM dimensional specifications for drop-in installation during head overhauls.
(0 reviews) -
Caterpillar Engine 3013C
Caterpillar 3013C Valve Spring Intake & Exhaust
- ESN Compatibility: Fits Caterpillar 3013C engine serial number prefixes 313, C5N, E1M, G3P, G7N.
- Application: Direct fit for both intake and exhaust valves (6 required per complete cylinder head).
- High-Tensile Alloy: Shot-peened spring steel engineered to prevent valve float and load decay under continuous load.
- Precision Tension: Restores factory seat pressure and dynamic valve control across the entire operating RPM range.
- Quality Standard: Built to heavy-duty dimensional and metallurgical tolerances for industrial and marine duty.
(0 reviews)
