Perko Marine Searchlight 19” Solar-Ray Lever/Gear Control Only, 22” L 120Volt (Color White)
• Wheel Control W/F 70″
• White Perko • Kote finish.
• These are designed and built with the commercial user
in mind where maximum size and brilliance count.
• These units are constructed of marine aluminum with heavy duty castings
and heavy gauge reinforced bodies for extra durability.
• Halo deflector.
• Parabolic glass reflector with shock resistant mounting.
• Lower vent cover.
• Hinged front doors have quick release stainless steel latches to provide
easy access for bulb replacement.
• Flat black interior finish.
• Slide-lock focusing device behind lower vent.
• Positive non-leaking seals. Heavy duty cast rack and pinion assembly.
• Floating stops in base to allow 400° rotation.
• Extra large cast aluminum base drilled for (4) 1/2” fasteners.
• Solar-Ray searchlight includes a socket, support stand based on the bulb
or socket information given when ordering
Perko Marine Searchlights Standar Pedestal Head Assemblies Control Solar-Ray 10″ Diameter 120Volt
• Standar Pedestal Head Assemblies
• Wheel Control Assemblies.
– Turn upper wheel for horizontal position.
– Turn lower wheel for vertical position.
– Distance between wheels: 2”.
– Maximum ceiling thickness: 3”.
• Lever/Gear Control Assemblies.
– Aim handle for horizontal position.
– Twist handle for vertical position.
– Maximum ceiling thickness: 3-1/2”.
• Order head and wheel or lever/gear control assemblies separately.
Perko Pilot House Control Marine Searchlights LVR CN TRL 7″
• Chrome plated brass head with
chrome plated bronze base.
• Lever action, pilot house control.
• Lever handle controls both horizontal
and vertical movement.
• Tin plated electrical contacts and wiring.
• 380° horizontal movement, 70° vertical movement.
• For ceiling thicknesses of up to 5”.

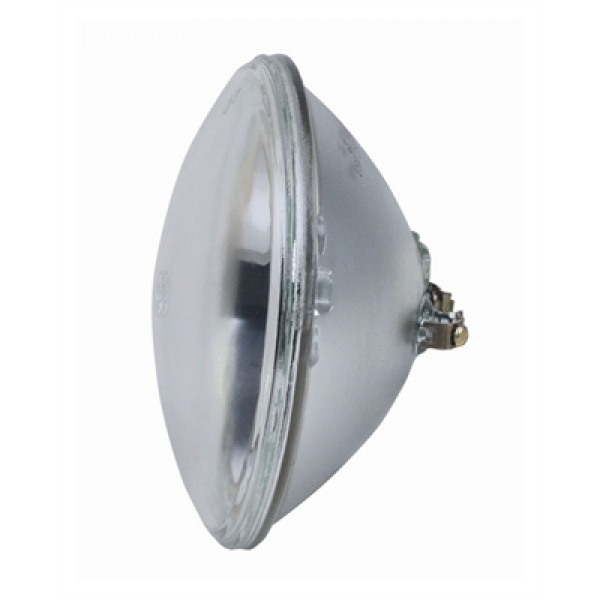

• 7” sealed beam unit.
• Approximately range 5/8 mile
