Additional information
| Weight | 264 lbs |
|---|---|
| Dimensions | 48 × 42 × 24 in |

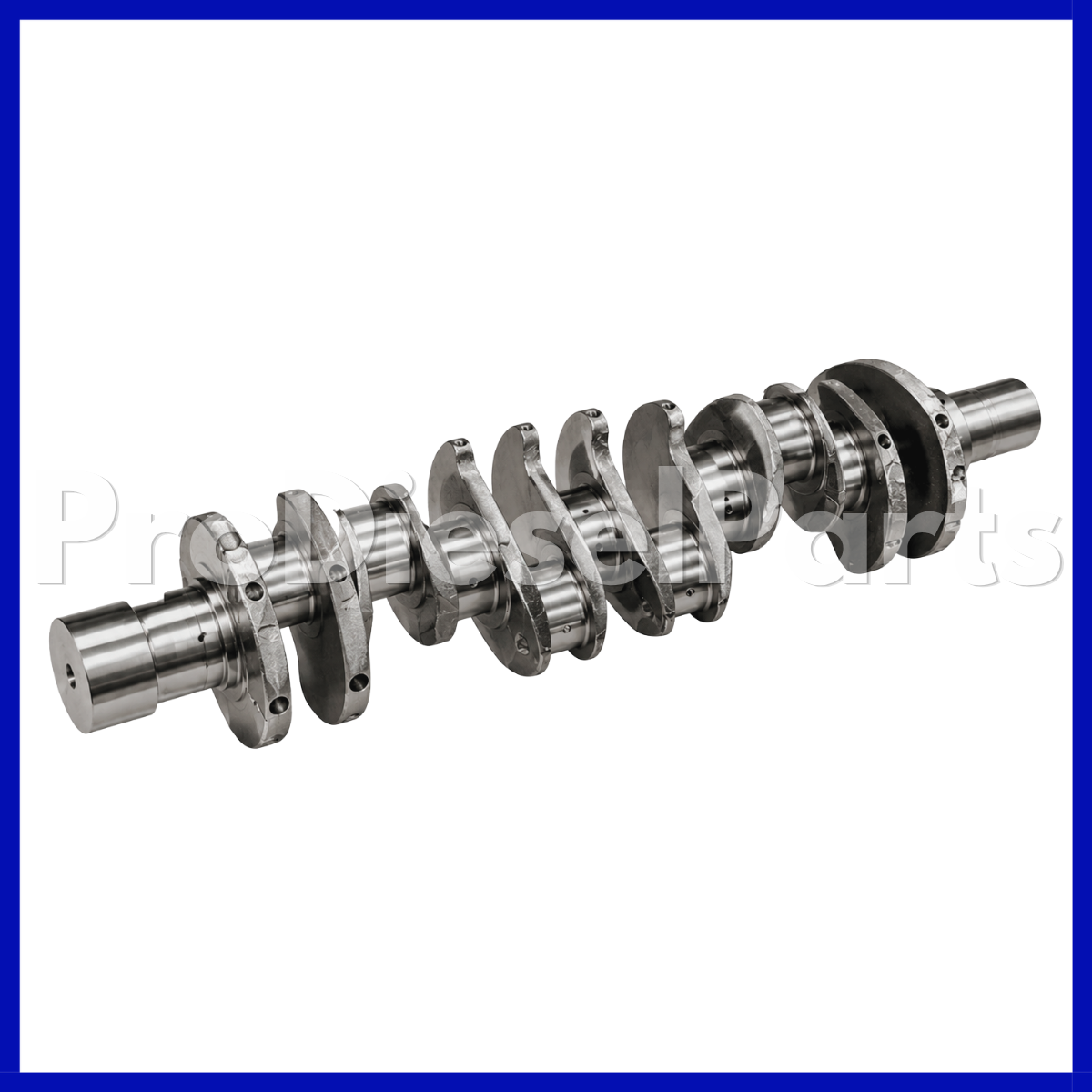

Long Snout Crankshaft Cummins Engine L10
Long Snout External Damper Cummins Engine L 10 – Engine LT 10
Crankshaft for a 6-cylinder diesel engine, external damper / externally balanced configuration. Long-snout configuration with 5 front holes, one keyway, and an external damper. The crankshaft is installed at the bottom of the engine block, supported by main bearings. It converts the reciprocating motion of the pistons and connecting rods into rotational motion, transmitting the torque produced by combustion to the flywheel and the transmission. Forged steel, with a heat-treating process.
Used on the L10, LT10, ISC 8.3, ISL 8.9, and QSL 8.9 / QSL 9 engines.
Always verify the engine serial number (ESN), CPL, number of nose holes, nose length, damper type, and original OEM number before placing an order. The “L10” model alone is not sufficient, because Cummins uses different crankshaft configurations within the same family.
$3,995.00
In StockRelated products
-
CumminsInsert – Intake and Exhaust Valve Cummins Engine L10
Valve Insert / Valve Seat Cummins Engine L10 / LTA10
Cylinder head; can be used as a seat for the intake or exhaust valve, depending on the cylinder head configuration.
Compatible engines: Cummins L10 / LTA10. Some aftermarket catalogs also list the M11, but Cummins officially specifies part number 3418040 primarily for non-certified 10-liter L10 engines. Always verify using the Engine Serial Number (ESN).
(0 reviews) -
CumminsKit Valve Exhaust Cummins Engine L10 – Engine M11 – Engine ISM – Engine QSM
Kit – Valve – Exhaust Cummins Engine ISL10 OLD PARTS# 3801357
(0 reviews)$15.66 Add to cart -
CumminsEGR Valve Gasket Cummins Engine ISL – Engine QSL
Exhaust Gas Recirculation Valve Gasket Cummins Engine ISL 8.9 – Engine QSL 8.9 / 9
Installed in the EGR (Exhaust Gas Recirculation) circuit. It serves to create a seal between the EGR valve and the corresponding manifold/duct, preventing exhaust gas leaks during recirculation. A proper seal allows the EGR system to correctly route a portion of the exhaust gases back into the intake and contributes to the proper functioning of the emissions control system.
It is used on Cummins 6C 8.3, 6CT 8.3, 6CTA 8.3, ISC, QSC, ISL 8.9, and QSL 8.9 / 9 engines.
I wouldn’t automatically consider all ISC/ISL/QSC/QSL units to be compatible. To ensure a proper sale, you need to verify the ESN/CPL and EGR configuration, because specifications can vary depending on the model year, emissions certification, and engine build.
(0 reviews)$5.75 Add to cart -
CumminsOil Seal Kit Rear Cummins Engine L10
Rear Crankshaft Seal Kit Cummins Engine L10
Rear end of the crankshaft, flywheel side; Rear oil seal with wear ring, prevents oil leakage between the crankshaft and the flywheel housing, For certain L10, M11, ISM11, and QSM11 engines, depending on the engine configuration. Dry-clutch application, Non-REPTO.
Final compatibility must be verified using the engine serial number, because the same M11/ISM model may use a different oil seal depending on the flywheel, clutch, and REPTO configuration.
(0 reviews)$68.99 Add to cart
