Description

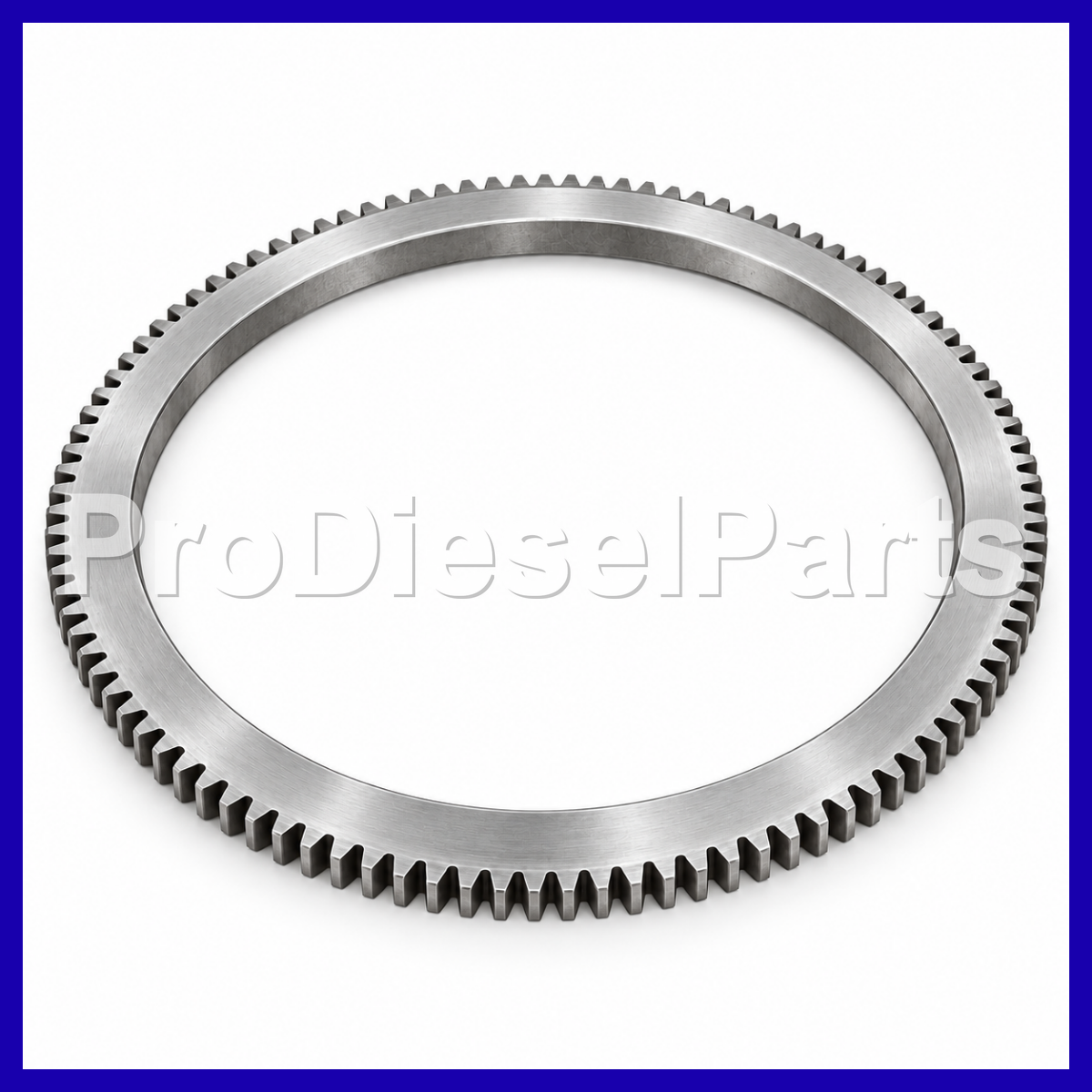

Ensure reliable cold starts and smooth starter pinion engagement with this precision-machined flywheel gear, engineered specifically for Caterpillar 3013C and C1.5 industrial diesel engines.
Engineering & Mechanical Specifications
Fitted securely around the outer perimeter of the flywheel assembly, the starter ring gear transfers cranking torque from the starter motor drive pinion to initiate combustion. Manufactured with an accurate 109-tooth spur profile, this component ensures quick engagement, eliminates tooth clash, and resists severe impact shock under high compression cranking cycles.
During flywheel inspection, always check the ring gear tooth flanks for chamfer wear or chipping. When carrying out a complete overhaul or clutch replacement, browse our matching components in the Caterpillar 3013C engine parts section for complete bottom-end rebuild kits.
Key Technical Features
- Precision 109-Tooth Profile: Formed strictly to standard pitch tolerances ensuring effortless pinion meshing and reduced starter drive wear.
- Induction-Hardened Carbon Steel: High-grade carbon steel construction with heat-treated tooth flanks to prevent tooth rounding, fractures, and surface fatigue.
- Thermal Interference Fit: Precision-bored inside diameter provides a secure shrink-fit perimeter lock on the flywheel body without slippage.
- Corrosion Inhibiting Coating: Treated with protective anti-oxidation fluid to maintain surface integrity prior to and during installation.
Installation & Service Guidelines
Replacement requires careful removal of the old ring gear and uniform heating of the replacement unit (typically using an oven or induction heater up to approximately 200°C–250°C / 400°F–480°F) to expand the inner diameter for seating against the flywheel shoulder. Never overheat using open localized torch flames. Ensure the lead-in tooth bevel faces the starter pinion direction according to service practices defined by SAE International Standards for flywheel and starter drive assemblies.
